In Stock & Ready to Ship

EarthQuaker Devices Afterneath

Regular price $219.00
+ $15 Shipping
All features
EarthQuaker Devices Afterneath
Regular price $219.00

Description

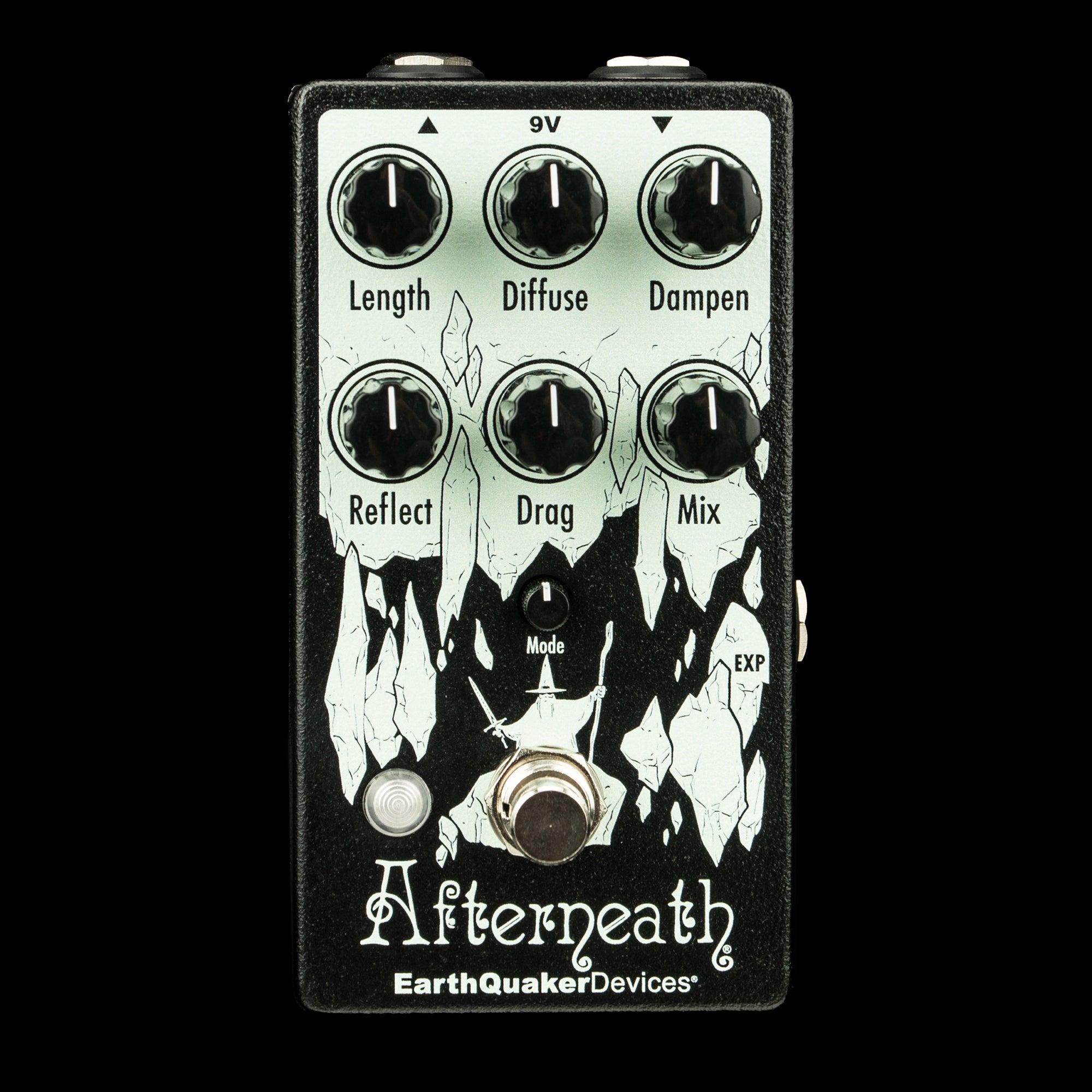

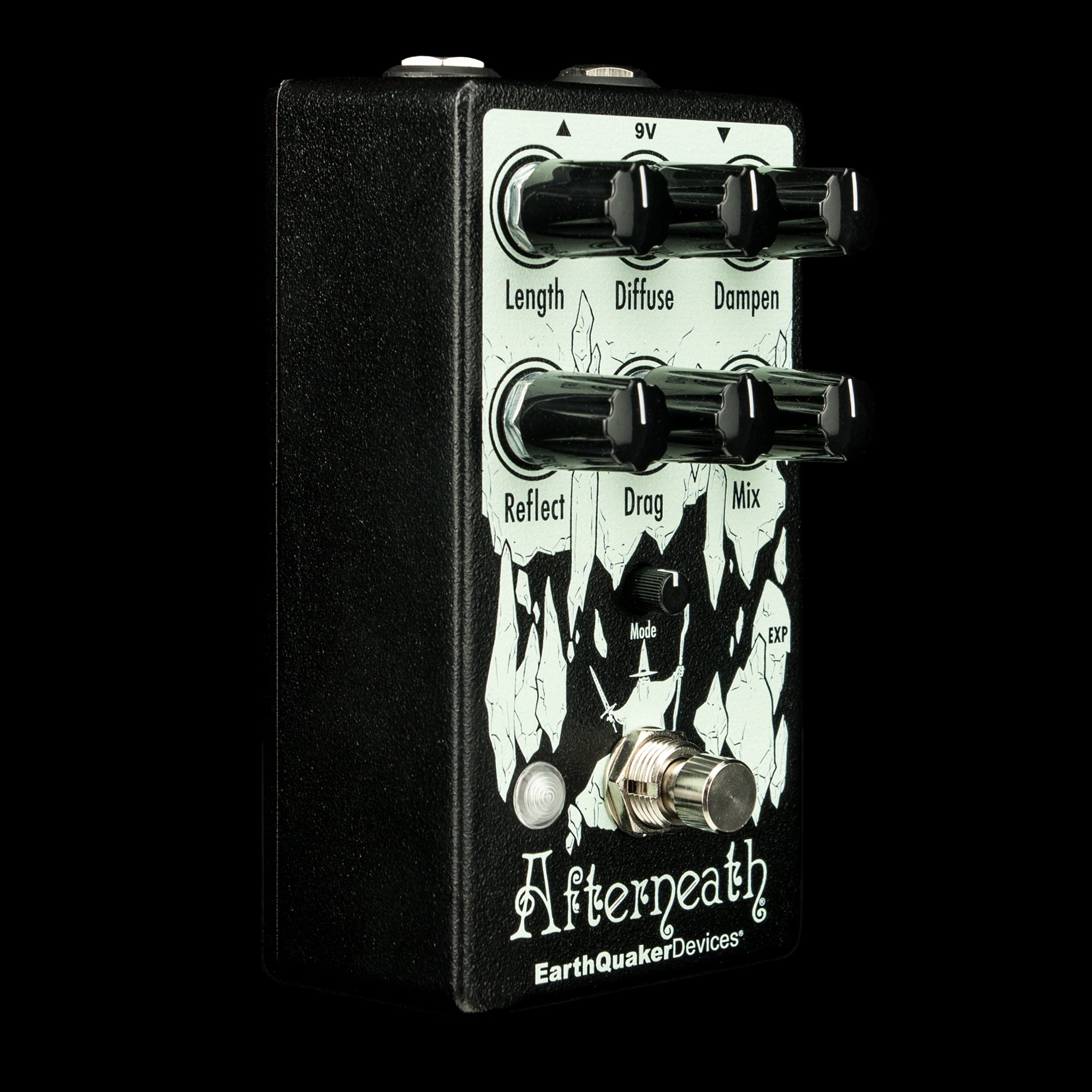

EarthQuaker Devices Afterneath Enhanced Otherworldly Reverberator

The Afterneath sounds a lot like it looks – a wizard bursting forth from ethereal cave and ready for the ambient battle. You are the wizard – or sorceress, if you prefer – and the cave is your instrument’s signal, vast, expansive, and magical. Do you go inside? Roll a D20 to proceed!

Once inside, a reflection of light from an unknown source catches your eye, and you notice a bizarre sheen on the walls of the cave. You timidly inch closer to the walls of the cave. Placing your hand gently on the cavern wall, you feel the rock move. The cave is alive! Alarmed, you emit a loud gasp, which reverberates throughout the subterranean landscape. Upon further listening, it appears as though the reverberations of your voice are in fact a swarm of short digital delays which may be used to create wild and cavernous reverbs, or scattered, short, rhythmic delays with bizarre characteristics.

Modes:

  • Unquantized: Smooth, unquantized response over the operating range
  • Unquantized with Slew: Smooth, unquantized response over the entire operating range, but with a musical slew that is reminiscent of turning the varispeed knob on a vintage British tape delay. The “Drag” will lag behind the knob or cv changes, but then quickly catch up.
  • Unquantized Volt/Octave: Smooth and unquantized, yet scaled to align with the 1v/octave curve to allow melodic modulation of audio in the buffer, or control the frequency of self-oscillation like a voltage controlled oscillator.
  • Chromatic Scale: Quantized 1v/octave to the chromatic scale
  • Minor Scale: Quantized 1v/octave to the minor scale
  • Major Scale (Lydian): Quantized 1v/octave to the major scale (Lydian)
  • Pentatonic Scale: Quantized 1v/octave to the pentatonic scale
  • Octaves & Fifths: Quantized 1v/octave to omit all but octaves and fifths
  • Octaves: Quantized 1v/octave to omit all but octaves

The pedal comes with EarthQuaker Devices' Factory Warranty and our 100% satisfaction guarantee!

Specifications

  • Dimensions 4.75 x 2.50 x 2.25 Inches (121 x 64 x 57 mm) With Knobs
  • Current Draw 100 mA
  • Input Impedance 1 MΩ
  • Output Impedance 500 Ω
  • Expression Jack 50k Recommended (Mission Engineering EQD-1); Supports CV (0-5V), Tip; Wiper, Ring; 5V, Sleeve; Ground
  • Switching Flexi-Switch® Technology (Momentary/Latching)
  • Bypass Electronic Buffered Bypass
  • Power Supply 9 Volts DC (Standard 2.1 mm Negative Center Barrel)
  • Power Note Isolated Supply Recommended; Do Not Run At Higher Voltages
  • Artwork Matt Horak
