EarthQuaker Devices ZEQD-Pre

EarthQuaker Devices ZEQD-Pre The All-Analog Simulation Solution

A collaboration between EarthQuaker Devices and Dr. Z Amplification

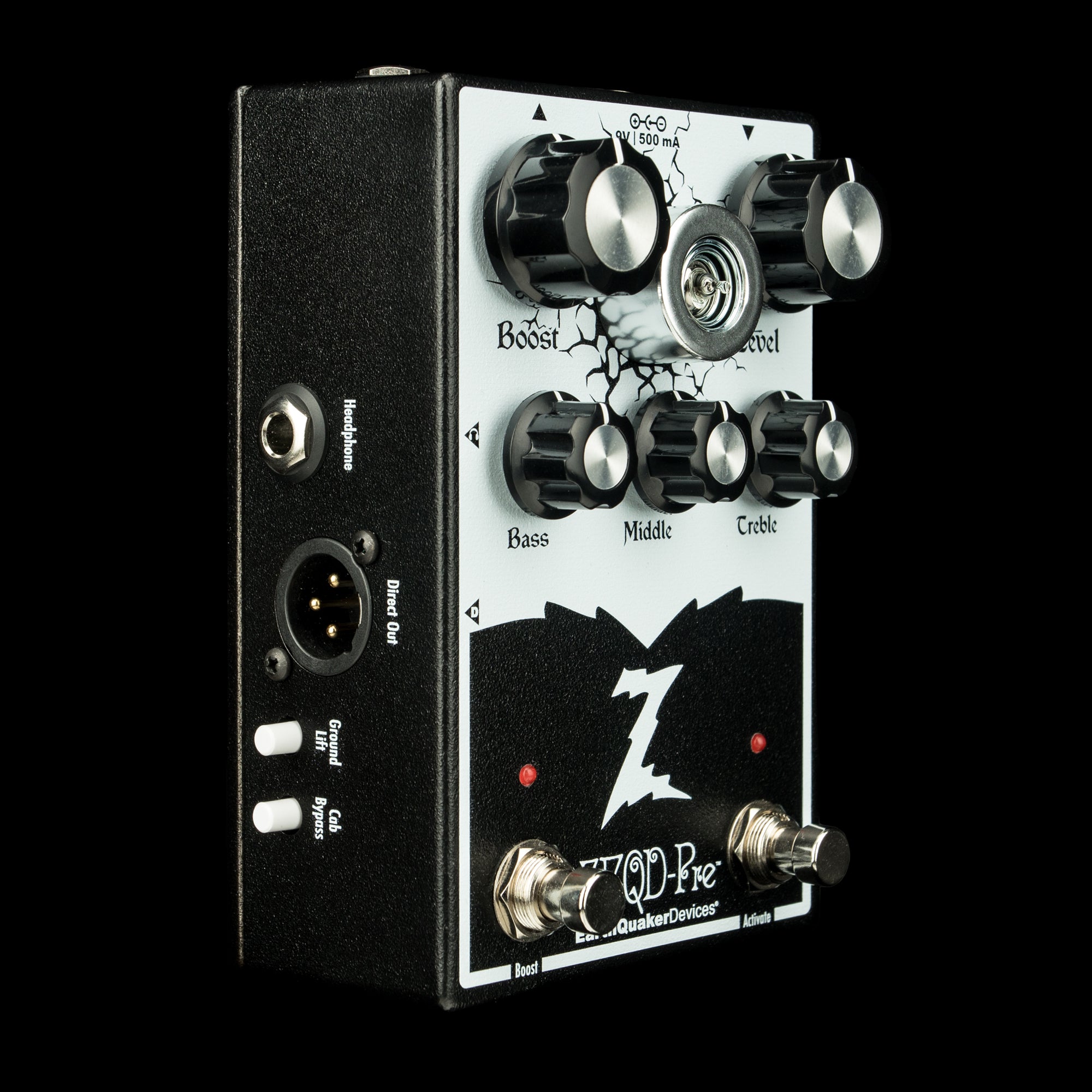

This all-analog tube preamplifier brings together EarthQuaker Devices’ innovative pedal design and Dr. Z Amplification’s decades of tube amp expertise. With a passive three-band EQ, professional headphone output, balanced XLR output, and onboard analog cabinet simulation, the ZEQD-Pre delivers authentic tube warmth and dynamic response in a complete analog amplifier system that fits right on your pedalboard.

More Than A Preamp:

• Practice Amp: The headphone output features built-in analog cabinet simulation for a realistic amp feel during quiet practice sessions. Enjoy the full EF86 tube character without disturbing your housemates.
• Direct Amplifier: Run the balanced XLR output straight into any console or interface and use the ZEQD-Pre as your main amp. The analog cabinet simulation is there when you need it, or flip the Cab Bypass switch to send a pure signal to your preferred IR loader or modeling software. Perfect for direct recording, backline-free gigs, or hybrid rigs with multiple signal paths.
• Flexible Routing: All outputs work simultaneously, even when the pedal is bypassed. Send your signal to an amp, route a direct feed to front-of-house, and monitor through headphones—all at once. This routing flexibility makes the ZEQD-Pre an invaluable studio tool.

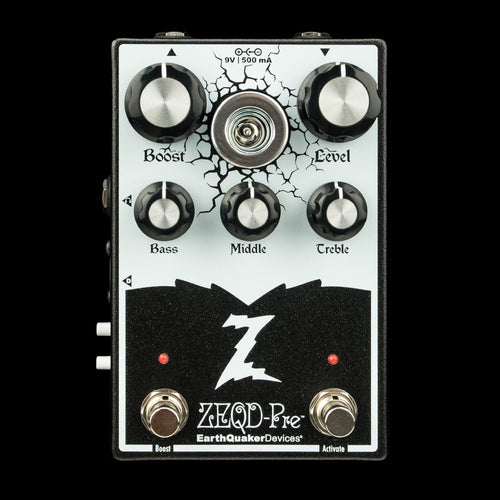

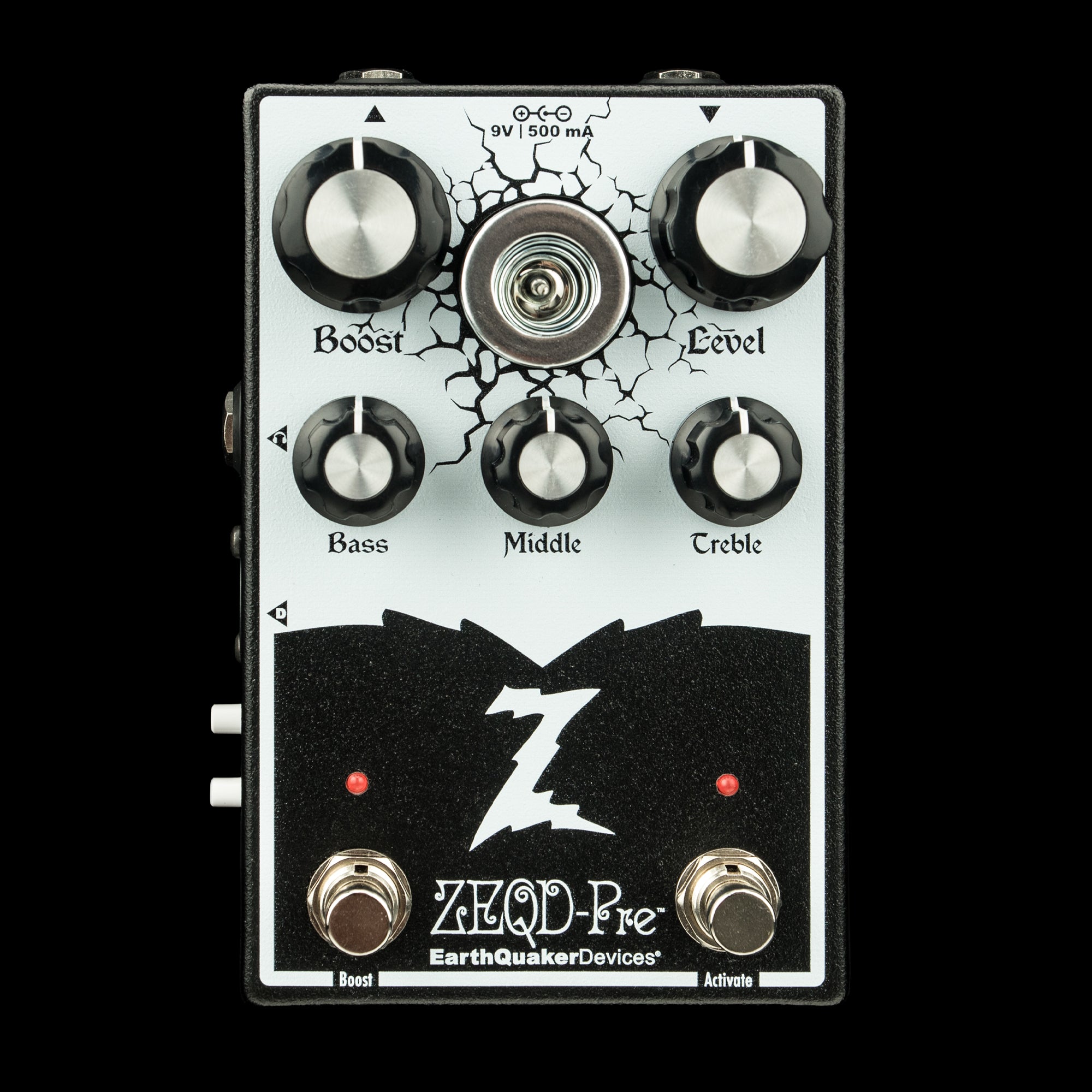

Controls:

• Boost: Use the Boost rotary knob for volume control when the Boost is active and the tone controls are bypassed. Boost mode is very loud! Be careful when setting the Boost level, especially when using headphones or XLR out.
• Boost Footswitch: This footswitch defeats the tone controls and delivers a full-range boost without altering the frequency response. This switch is only active when the Activate footswitch is on.

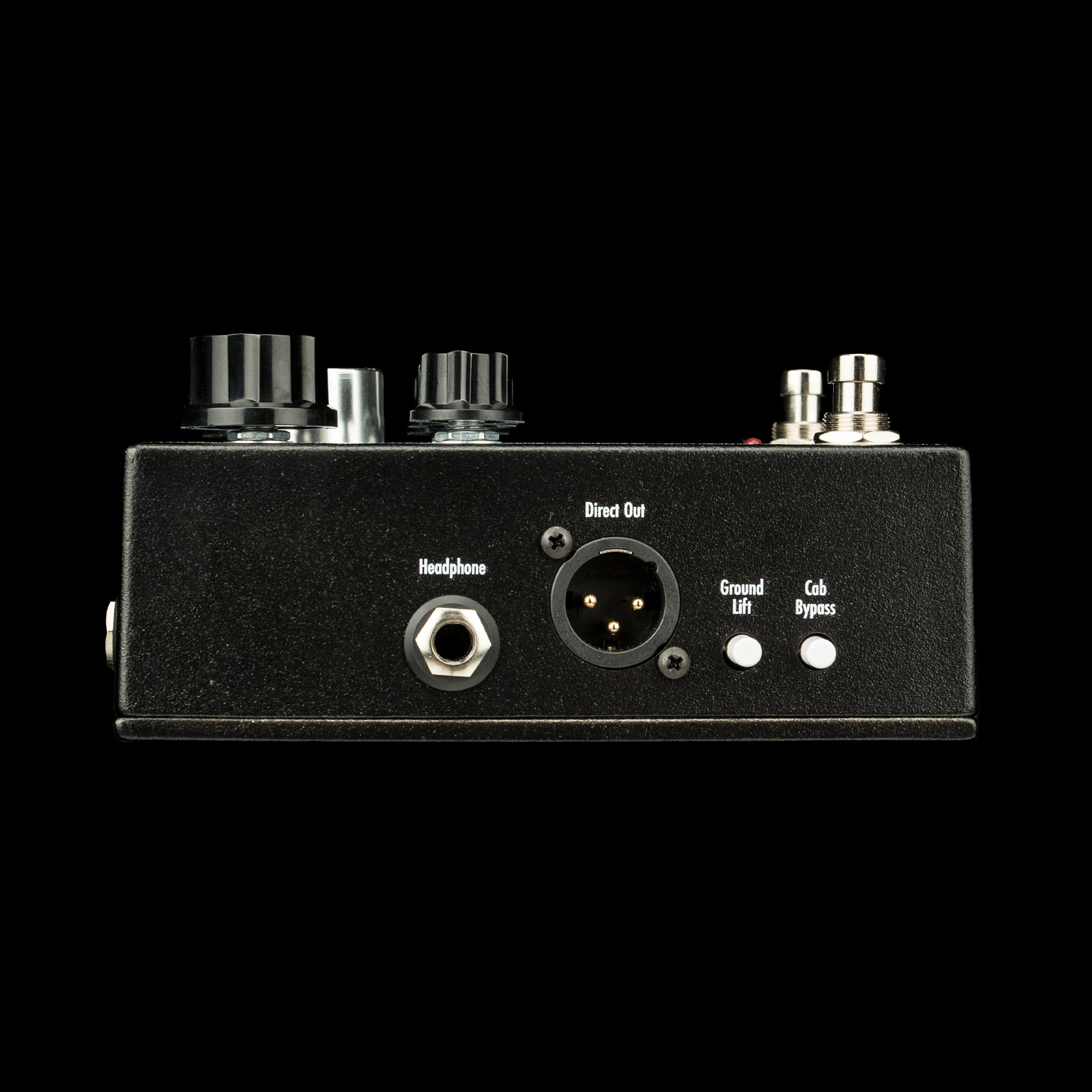

• Headphone Output: A TRS (Stereo) ¼” headphone jack is located on the left side. Use the Level control to adjust headphone level when the pedal is active. The headphone output works as a unity gain amplifier with cabinet simulation even when the pedal is bypassed.
• Direct Output: A balanced XLR output is located on the left side of the pedal.
• Ground Lift Switch: Press this switch on the left side of the pedal for ground lift on the XLR output.
• Cab Sim Bypass Switch: Press this switch on the left side of the pedal to remove the analog cabinet simulation on the XLR output.
• Level: Use the Level rotary knob to adjust the output volume when the tone controls are active.
• Bass: Use the Bass rotary knob to adjust the frequency range from 20 Hz to 400 Hz.
• Middle: Use the Middle rotary knob to adjust the frequency range from 400 Hz to 2 kHz.
• Treble: Use the Treble rotary knob to adjust the frequency range from 2 kHz to 20 kHz.
• Activate Footswitch: Use this footswitch to activate or bypass the ZEQD-Pre.

The pedal comes with EarthQuaker Devices' Factory Warranty and our 100% satisfaction guarantee!
