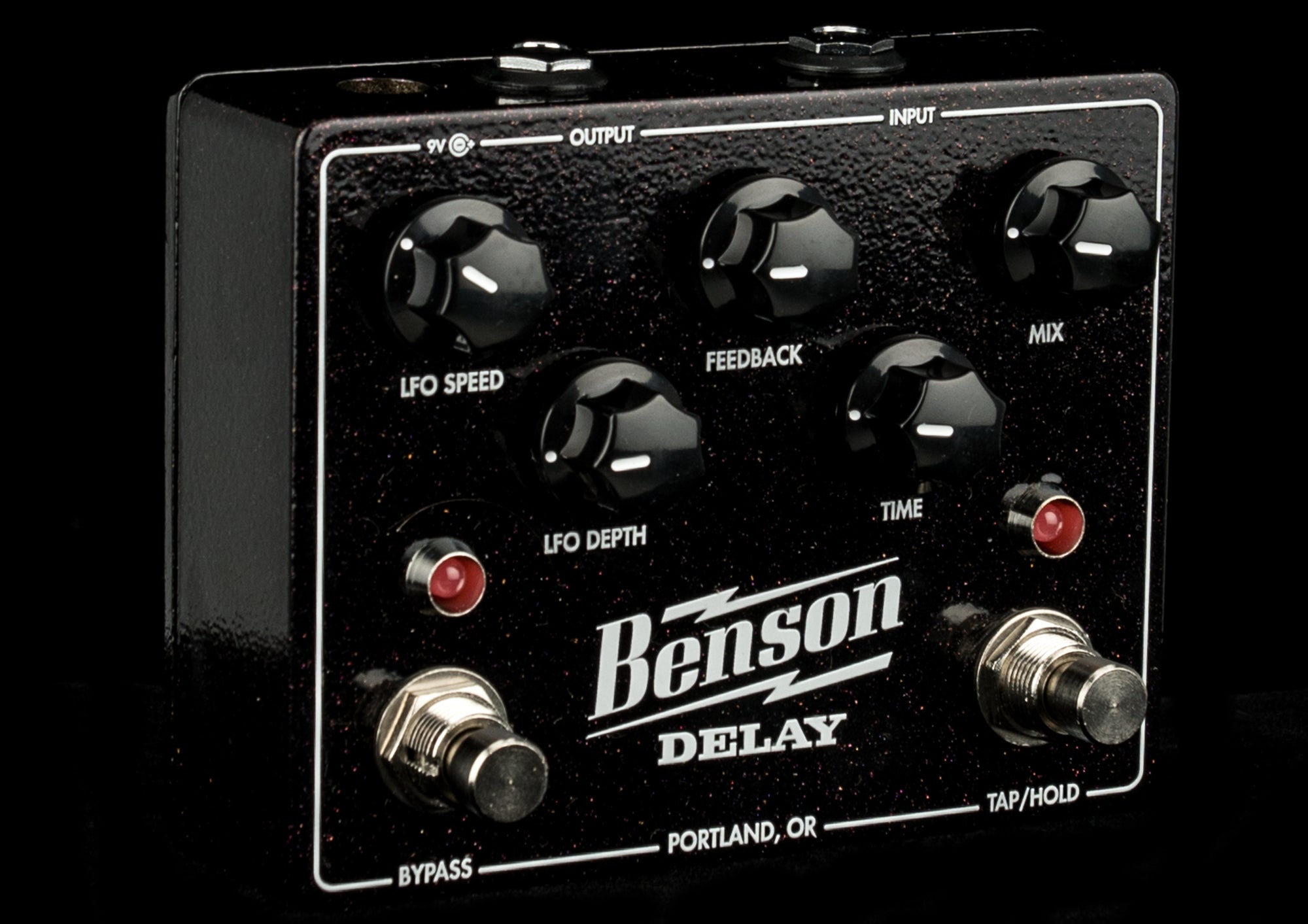

Benson Delay

Benson Delay

SOUND
Drawing inspiration from Benson's history in tape and bucket brigade echo servicing, the design goal was creating floaty and colorful repeats with a chaotic yet musical degradation. That’s the heart of the thing, the whole point.

RANGE
With a 30ms-1250ms range, the Benson delay goes fast enough to do chorus, vibrato and slapback, and slow enough to create blurred and haunted soundscapes, with a whole spectrum of warbly musical sounds in between.

ALIENS
Hold down the tap knob to boost feedback for some self oscillation! Perfect for holding notes out, and especially for making alien invasion noises in tandem with the time knob (within a toe’s reach). Works when the feedback knob is up a bit. Does not introduce unwanted clicking sounds into the signal path. Adjustable via internal trim pot.

WARBLE
The Low Frequency Oscillator has a tremendous range of both speed and depth, as well as sine, square and random waveforms. Does warble, seasick, tape flutter, all the good sounds.

TAP
The Benson Delay has the most accurate tap tempo ever applied to the PT2399 thanks to Bontempo, an open source technology concocted by Antoine Ricoux at Electric Canary, which was then refined and implemented by film colorist Octave Zangs (two geniuses). Each pedal CALIBRATES ITSELF IT’S SO COOL.

SMOOTH
Benson wanted to avoid the more modern issues of delay design; like the digital jaggedness that can come from adjusting the time control on a digitally clocked device, whether analog or a fully digital simulation (HAS THIS EVER HAPPENED TO YOU?). In other words, let’s not assume the aforementioned aliens have glitchy spaceships.

WOW THE NARRATIVE
The design process was characteristically obsessive and obliquely dysfunctional. Lots of bright people in the industry left their mark in one way or another. Special shout outs to Jack Deville, Bryan Sours and John Snyder. Lessee...after dutifully slogging through the modern bucket brigade scene for a while, Benson found paradise in the form of the ubiquitous PT2399. Turns out, when you treat it well, you can get a great sounding delay with a massive range out of it.  They utilized a combination of gooey compander chip, analog filtering, and careful gain staging (amp designers are decent at that).

THE MENU
To access LFO waveform and tap division menu, hold down BYPASS for two seconds, then tap TAP/ HOLD once. BYPASS switch toggles between SINE, SQUARE and RANDOM waveforms, which will blink 1, 2 or 3 times respectively. TAP/HOLD switch toggles through QUARTER, DOTTED EIGHTH, and EIGHTH note tap divisions, and the LED will blink 1, 2 or 3 times (respectively). Hold down BYPASS for two seconds to exit MENU.

Center Negative 9VDC power supply, 100ma current draw.

The pedal comes with Benson's Factory Warranty and our 100% satisfaction guarantee!
