MXR Carbon Copy Analog Delay
OTHER AVAILABLE SERIALS
Select a collection or products to display in the carousel
Description

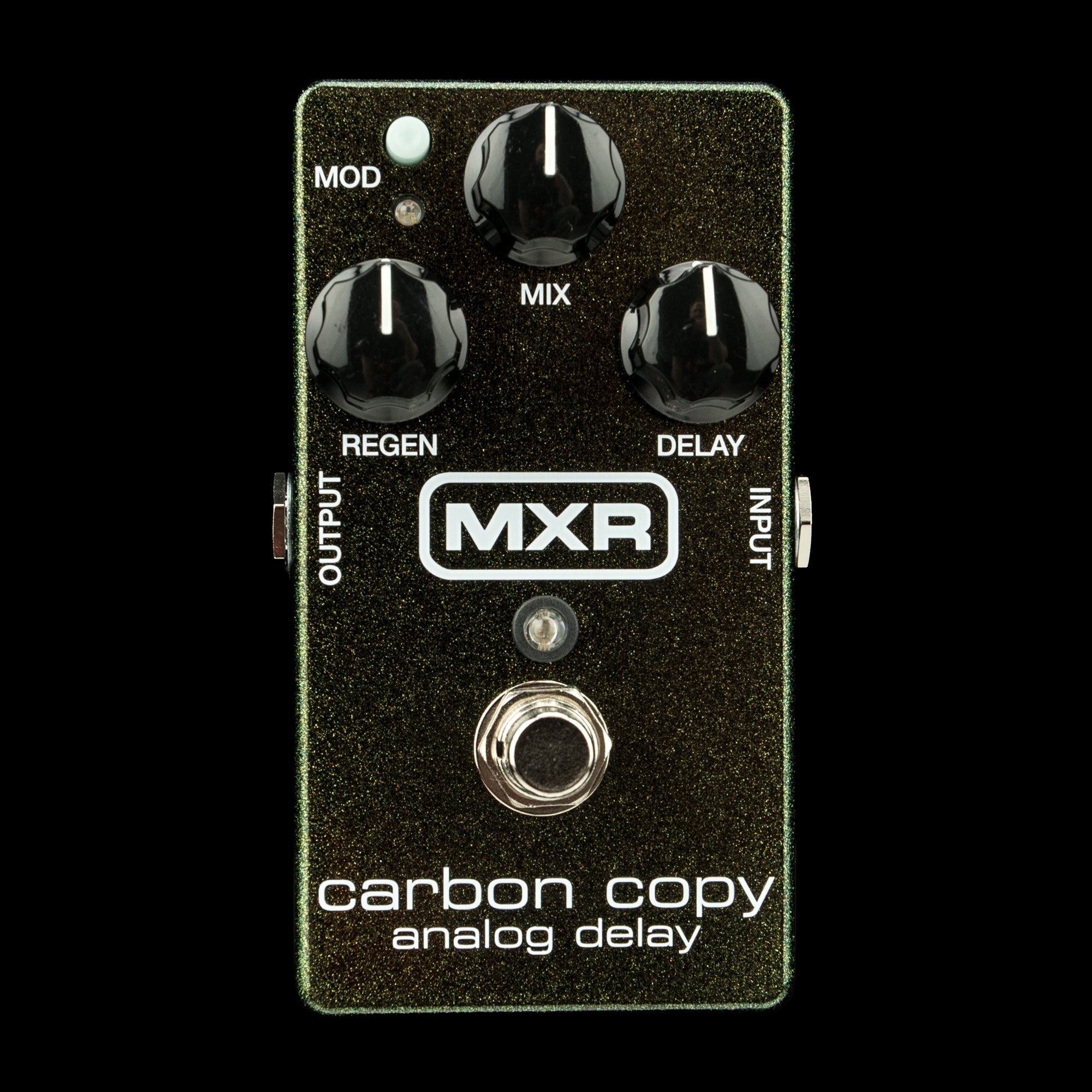

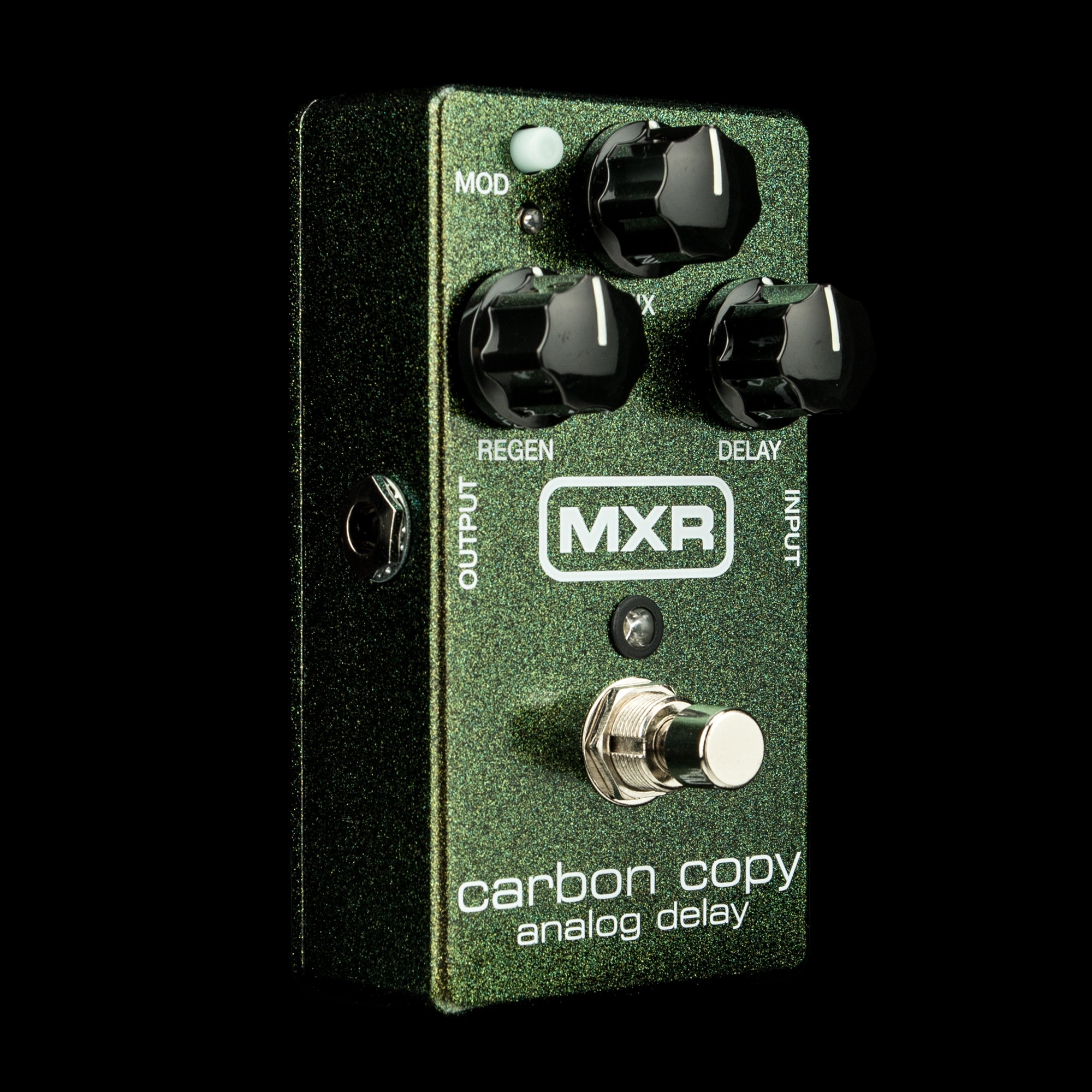

MXR Carbon Copy Analog Delay
The Carbon Copy Analog Delay delivers rich, warm bucket-bridgade delay with up to 600ms of delay time and modulation.
THE LONG STORY
Go from crisp "bathroom" slap echoes to epic, Gilmouresque delays with the MXR Carbon Copy Analog Delay. Featuring 600ms of delay time with optional modulation, and a three-knob layout that controls Delay, Mix, and Regen. In addition, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options. All done by a completely analog audio path for authentic rich, warm analog delay—made possible only by old-school analog bucket brigade technology. True bypass.
The pedal comes with MXR’s Factory Warranty and our 100% satisfaction guarantee!
Specifications
-
Input Impedance1 MΩ
-
Output Impedance1 kΩ
-
Max Input Level+5 dBV At 500 Hz
-
Max Output Level+8 dBV
-
Noise FloorMix At Max CW -96 dBV; Mix At Max CCW -104 dBV
-
Delay Distortion< 1% At 1 kHz, -5 dBV Input
-
Delay Time20 ms To 600 ms
-
Noise Reduction2
-
Modulation Speed0.2 Hz To 2.2 Hz
-
BypassTrue Hardwire
-
Current Draw26 mA
MXR Carbon Copy Analog Delay
-
Input Impedance1 MΩ
-
Output Impedance1 kΩ
-
Max Input Level+5 dBV At 500 Hz
-
Max Output Level+8 dBV
-
Noise FloorMix At Max CW -96 dBV; Mix At Max CCW -104 dBV
-
Delay Distortion< 1% At 1 kHz, -5 dBV Input
-
Delay Time20 ms To 600 ms
-
Noise Reduction2
-
Modulation Speed0.2 Hz To 2.2 Hz
-
BypassTrue Hardwire
-
Current Draw26 mA
-
Power Supply9 Volts DC
